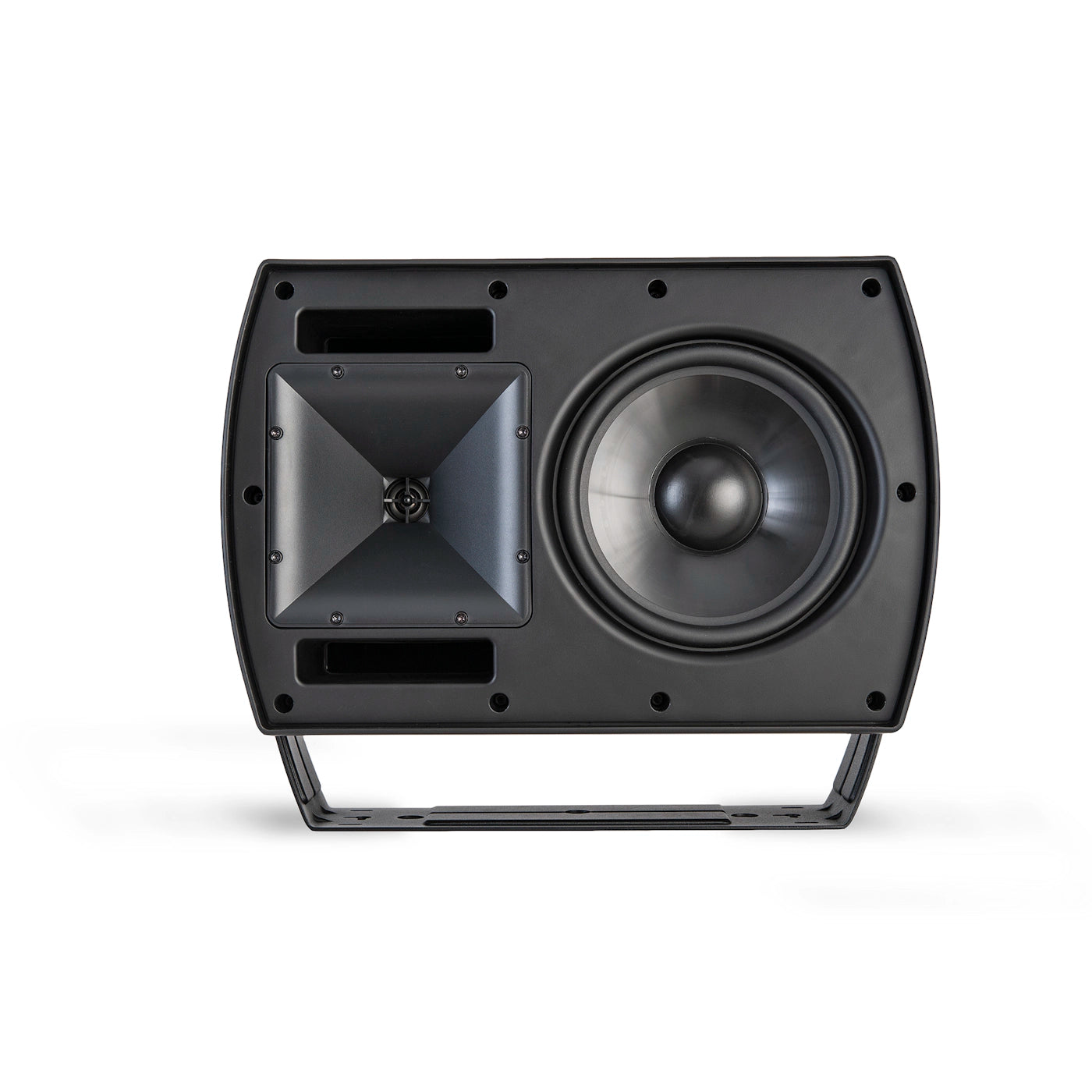

Klipsch CA-800-T Black All-Weather Outdoor Speakers

Klipsch CA-800-T Black All-Weather Outdoor Speakers

Perfect for foreground or background distributed sound applications in indoor or outdoor residential commercial or recreational environments, the compact full-range 70-volt CA-800T loudspeaker was designed for those who know better than to expect mediocre output.

FREQUENCY RESPONSE1 64-17.5kHz ± 4dB
POWER HANDLING2 100W (21V)
MAX CONTINUOUS OUTPUT3 113dB
SENSITIVITY (2.83V/1M)4 96dB
HORIZONTAL COVERAGE 90° ± 40 1.2kHz-20kHz
VERTICAL COVERAGE 90° ± 30 1kHz-20kHz
DI 7 ± 2.5dB 700Hz-20kHz
Q 5
NOMINAL IMPEDANCE 8 ohms (4.5 ohm min @167Hz)
CROSSOVER 1.9kHz with 12dB/Octave high-pass
12dB/Octave low-pass
TRANSDUCERS One K-1183-A 8" woofer with IMG Cone
One K-150-A 1" titanium diaphragm
compression driver
ENCLOSURE TUNING Vented System via front firing ports
ENCLOSURE MATERIAL All-weather ABS plastic, paintable
INPUT CONNECTORS 4 position terminal strip
TRANSFORMER TAPS 70V: 60W, 30W, 15W, 7.5W, 3.75W
100V: 60W, 30W, 15W, 7.5W, 3.75W
Through Position: 8 ohms
HEIGHT 11.125" (28.26cm)
WIDTH 16.375" (41.53cm)
DEPTH 12.31" (31.27cm)
WEIGHT 18 lbs. (8.16kg)
