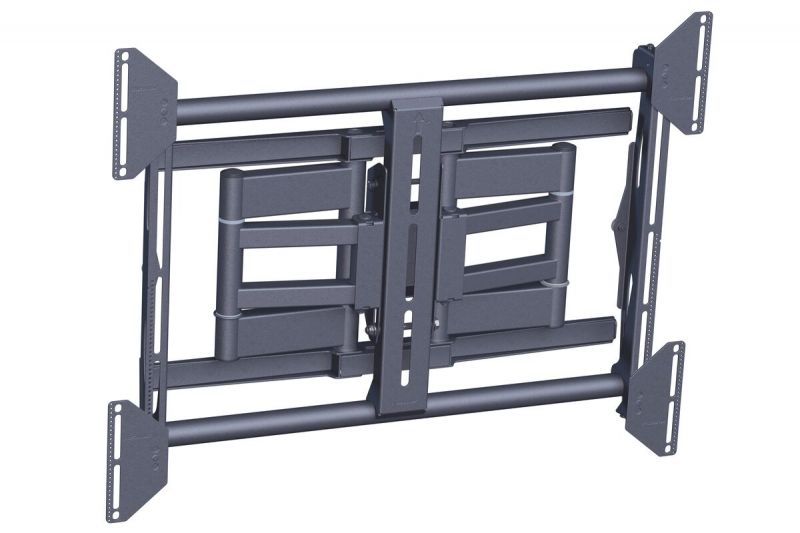

Vogels PFW 6851 DISPLAY WALL MOUNT TURN & TILT 80KG

The PFW 6851 is a swingout mount for displays up to 80 kg / 175 lbs. Typically fits displays ranging from 42 - 85 inch or displays with a mounting pattern of 200 x 200 mm to 800 x 600 mm.

The PFW 6851 allows up to 45° of swivel to both sides, 10° of tilt and extends up to 40 cm from the wall.

Specifications for PFW 6851 Display Wall Mount turn & tilt

EAN single box : 8712285323386

Series : PFW 6000 Series Pop-out & Turn

Product group : Display mount turn

Guarantee : 5 years

TÜV certified : Yes

Colour : Black

Min. screen size (inch) : 42

Max. screen size (inch) : 85

Max. weight load (kg) : 80

Max. weight load (lbs) : 176.37

Number of pivot points : 3

Turn : Up to 90°

Tilt : Tilt up to 10°

Orientation : Landscape

Hole pattern (VESA) :

• 200 mm x 200 mm
• 300 mm x 200 mm
• 300 mm x 300 mm
• 400 mm x 200 mm
• 400 mm x 300 mm
• 400 mm x 400 mm
• 500 mm x 200 mm
• 500 mm x 300 mm
• 500 mm x 400 mm
• 600 mm x 200 mm
• 600 mm x 300 mm
• 600 mm x 400 mm
• 600 mm x 600 mm
• 700 mm x 400 mm
• 700 mm x 450 mm
• 800 mm x 400 mm
• 800 mm x 450 mm
• 800 mm x 500 mm
• 800 mm x 600 mm

Lock options : No lock

Levelling function : Post-installation horizontal levelling

Min. horizontal hole pattern (mm) : 200

Max. horizontal hole pattern (mm) : 800

Min. vertical hole pattern (mm) : 200

Max. vertical hole pattern (mm) : 600

Number of arms : 2

Min. distance to the wall (mm) : 79

Min. distance to the wall (inch) : 3.11

Max. distance to the wall (mm) : 404
